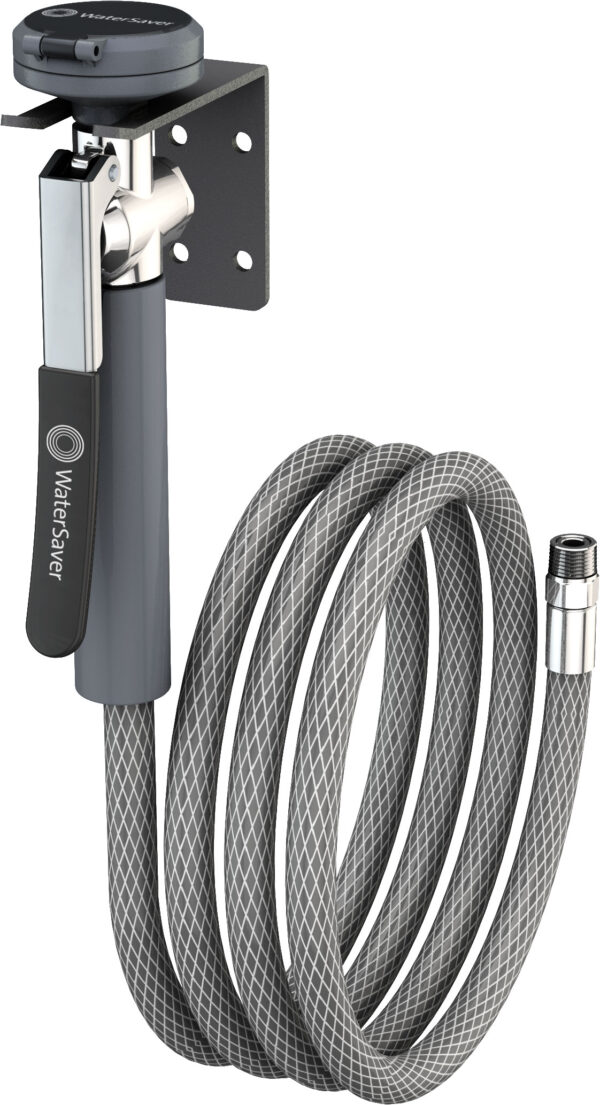

EW1025

Drench Hose Unit, Wall Mounted

Application: Drench hose unit for wall mounting. Ideal for rinsing any part of user’s eye, face or body. Note: Under ANSI Z358.1-2014, drench hose units supplement, but do not replace, other types of emergency equipment.

Spray Head: Single FS-Plus™ spray head. Spray head has “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.

Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released.

Hose: 8’ reinforced PVC hose. 275 PSI maximum working pressure.

Mounting: Wall mounted hook holds unit on wall.

Backflow Preventer: In-line dual check backflow preventer installed on inlet of hose (EW1025BP only). ASSE 1024 Listed. Note: Check with code authority for compliance with local plumbing code.

Supply: 3/8″ NPT male swivel-type inlet.

Sign: ANSI-compliant identification sign.

Quality Assurance: Unit is completely assembled and water tested prior to shipment.

Available Options

  • TM6020 Thermostatic mixing valve precisely blends hot and cold water to deliver tepid water as required by ANSI Z358.1-2014. Refer to “Thermostatic Mixing Valves” section for complete technical and product selection information.

  • FSH 8 ft. flexible stainless steel hose in place of PVC hose.

  • LC Locking clip for valve handle. Valve stays open until locking clip is released.

  • VB In-line vacuum breaker for installation between valve and spray head.
