Application: All-PVC combination WideArea™ eye/face wash and shower safety station. Unit is constructed of PVC, PVCcoated components and stainless steel valves for superior corrosion resistance. Ideal for industrial environments where harsh acids or caustics are present. Eye/face wash features four GS-Plus™ spray-type outlet heads that deliver a flood of water over a wide area of coverage for complete rinsing of eyes and face.

Shower Head: 10” diameter orange ABS plastic with 20 GPM flow control.

Shower Valve: 1” IPS Type 316 stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals. Furnished with stainless steel actuating arm and 29” stainless steel pull rod.

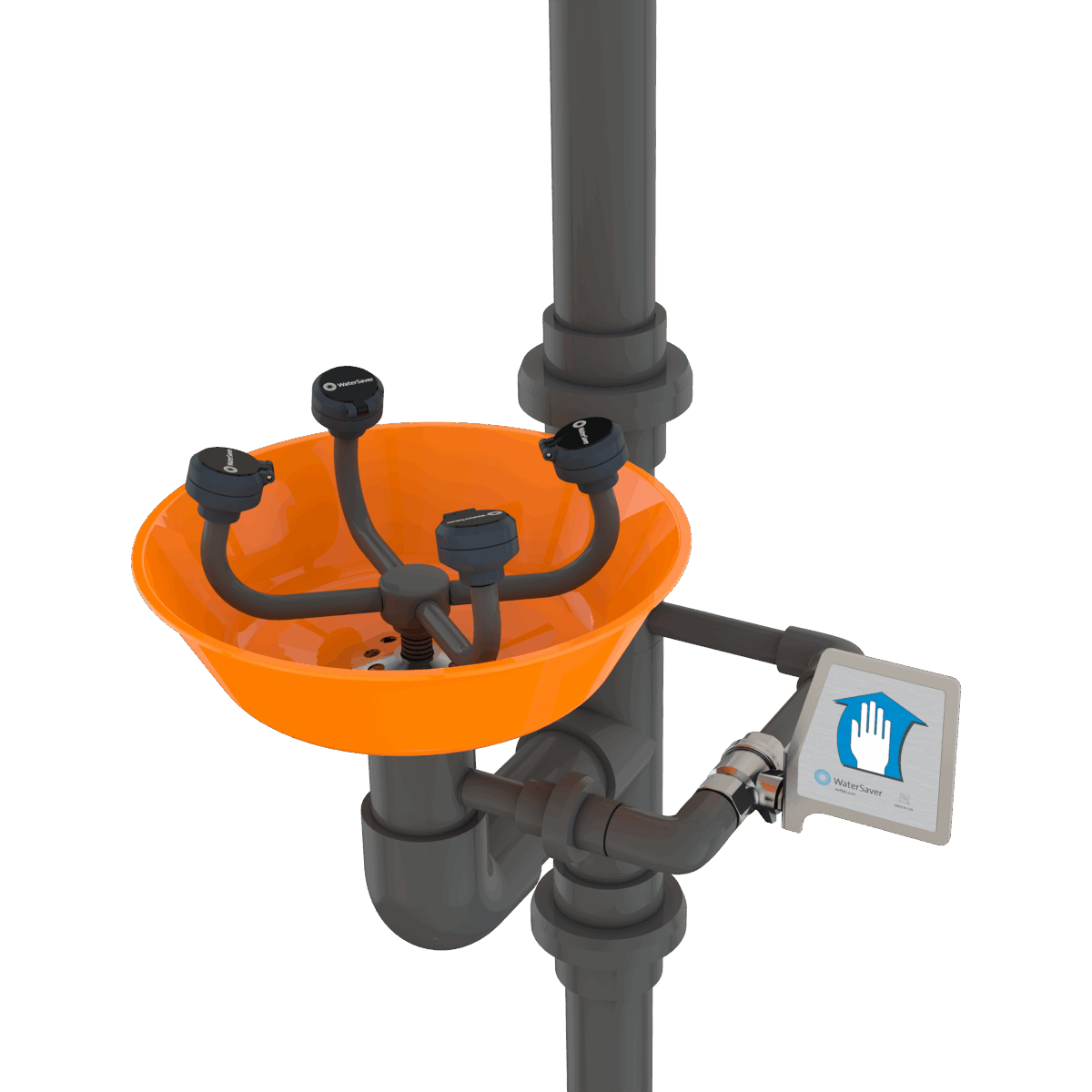

Spray Head Assembly: Four GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from water flow.

Eye/Face Wash Bowl: 11-3/4” diameter orange ABS plastic.

Eye/Face Wash Valve: 1/2” IPS Type 316 stainless steel stayopen ball valve. Valve has stainless steel ball and PTFE seals.

Pipe And Fittings: Schedule 80 PVC.

Supply: 2” IPS socket weld top female inlet.

Waste: 2” IPS socket weld female outlet.

Sign: ANSI-compliant identification sign.

Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
