VRSSBF909

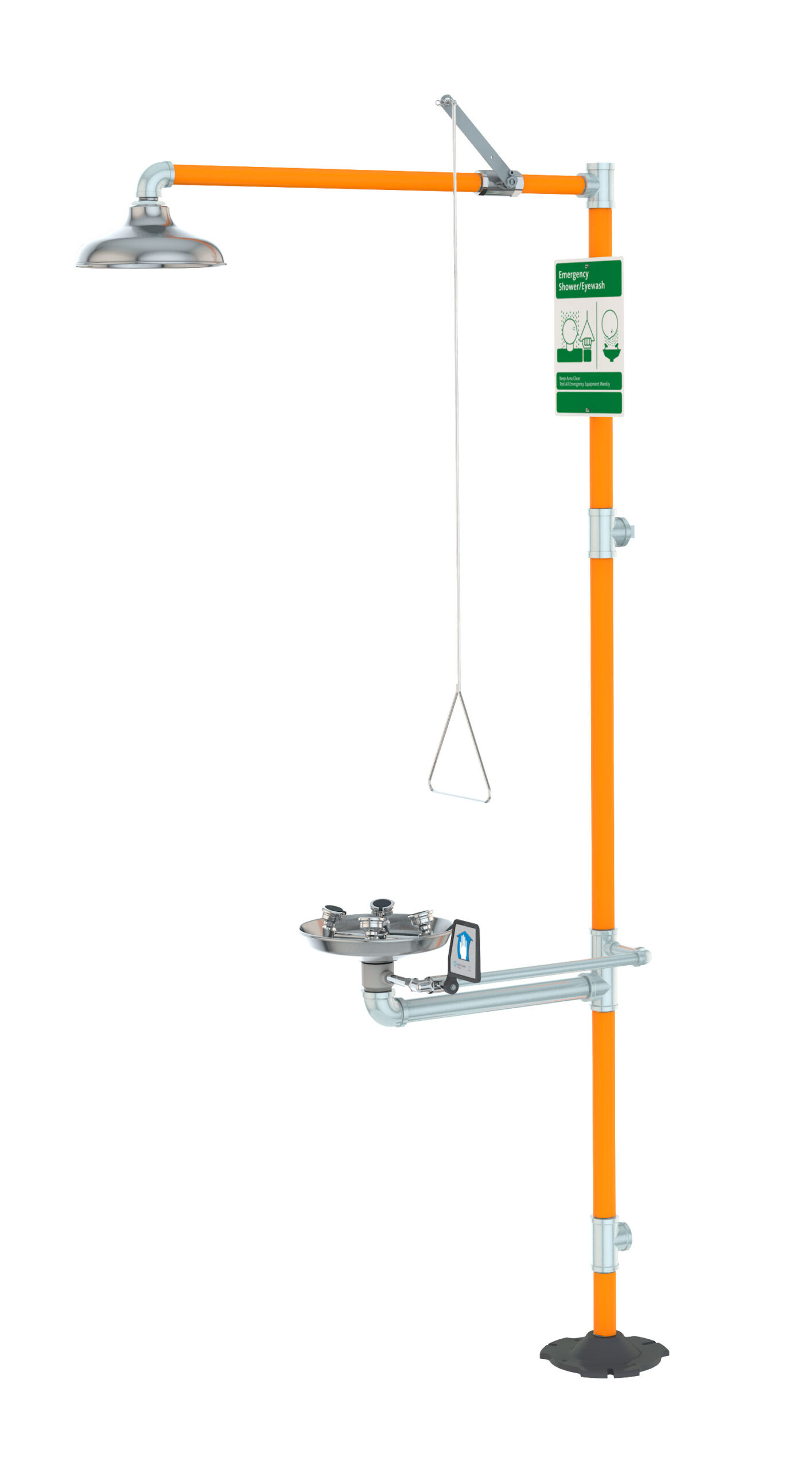

Vandal-Resistant Safety Station with WideArea™ Eye/Face Wash

Application: Combination WideArea™ eye/face wash and shower safety station with vandal-resistant construction. Ideal for use in schools and other areas where equipment may be subject to abuse.

ADA Compliance: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).

Shower Head: 10″ diameter stainless steel with 20 GPM flow control.

Shower Valve: 1” IPS chrome plated brass valve with stainless steel actuating arm and 29” stainless steel pull rod.

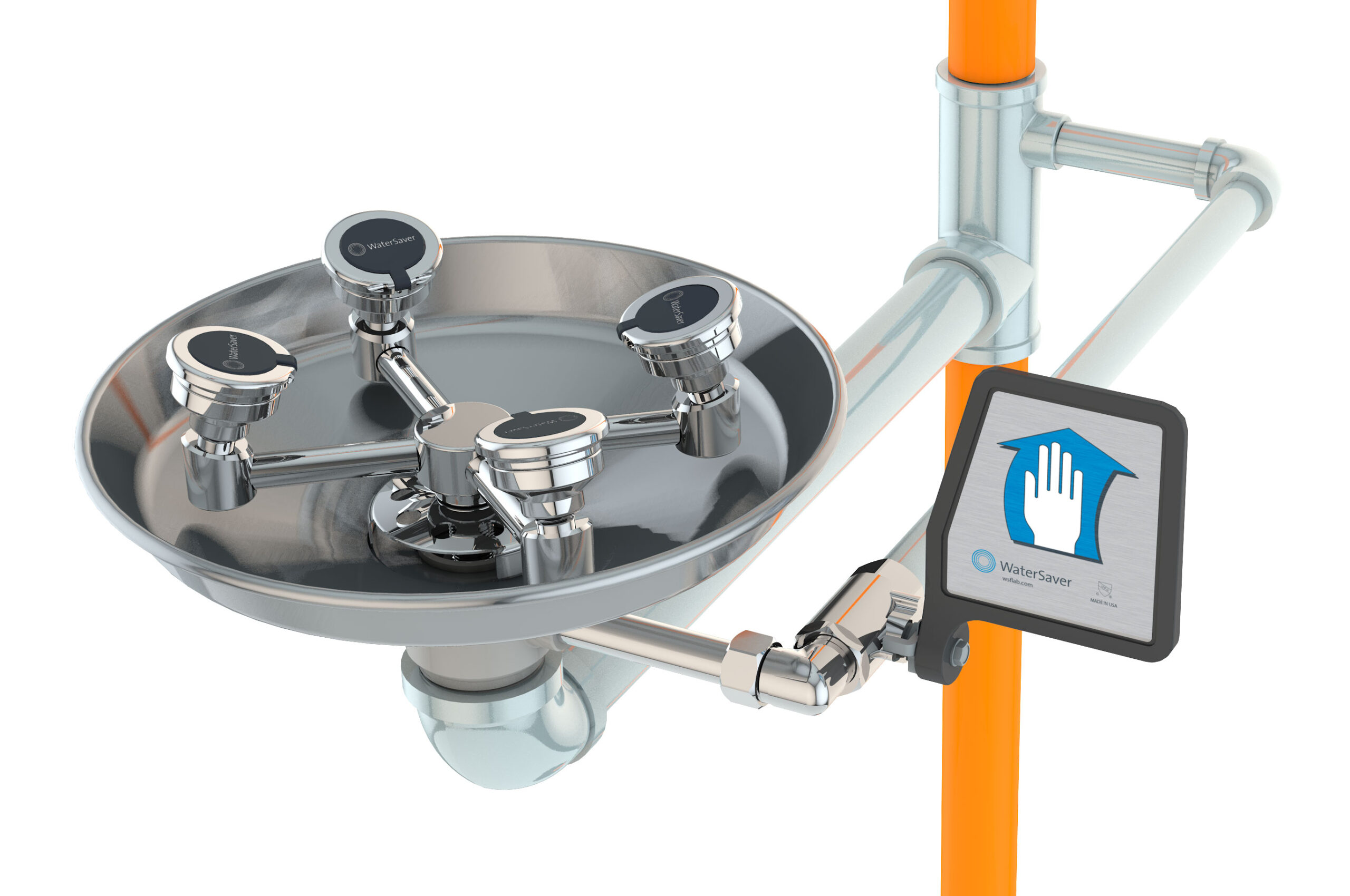

Spray Head Assembly: Each vandal-resistant GS-Plus™ spray head has a “flip-top” dust cover, internal flow control and filter to remove impurities from the water flow.

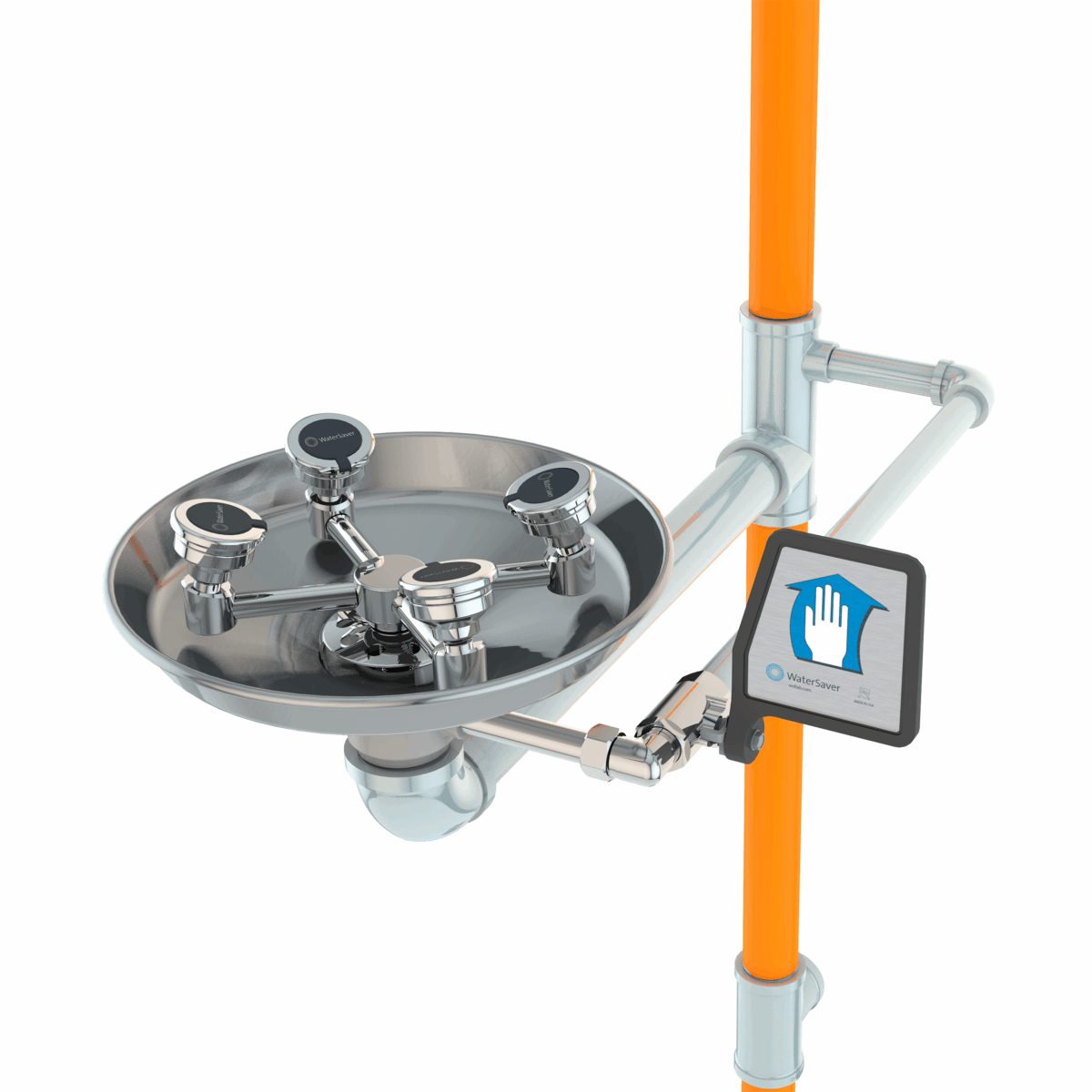

Eye/Face Wash Bowl: 11-1/8″ stainless steel.

Eye/Face Wash Valve: 1/2″ IPS chrome plated brass stay-open ball valve with flag handle.

Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.

Supply: 1-1/4″ NPT female top and side inlet.

Waste: 1-1/4″ NPT female outlet.

Sign: ANSI-compliant identification sign.

Quality Assurance: Valve, bowl and spray head assemblies are factory assembled and water tested prior to shipment.

Available Options

  • Your Content Goes Here

  • APBF250-015 Modesty curtain for mounting on safety station.

  • AP275-200 Electric flashing light and alarm horn unit for mounting on wall or vertical pipe. Light illuminates and horn sounds when eye/face wash or shower is activated. Furnished complete with flow switch and mounting hardware.

  • AP3800 Thermostatic mixing valve precisely blends hot and cold water to deliver warm (tepid) water as required by ANSI Z358.1-2014. Refer to “Tempering Valves” section for complete technical and product selection information.
