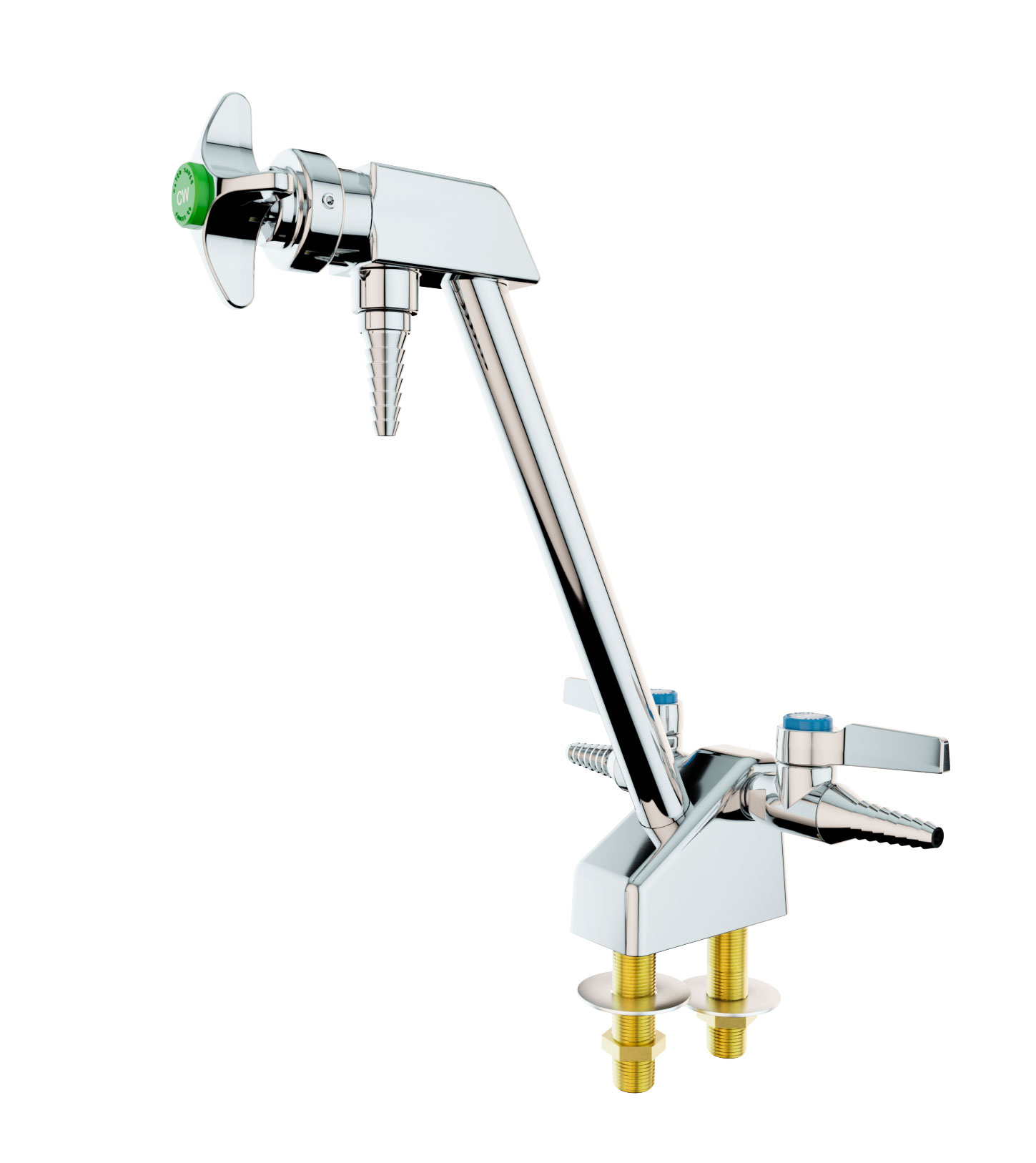

VR5300WSA

Combination Cold Water/Gas Fixture

Application: Vandal-resistant double service fixture for cold water and gas. All-forged brass construction for superior strength and durability. Furnished with WaterSaver self-contained compression valve unit with stainless steel valve seat. Two laboratory ball valves for gas service.

Vandal-Resistant Features

  • Dual inlet shanks prevent turning fixture on counter.

  • Inlet shanks are machined from solid brass bar stock or heavy wall steel pipe to resist breakage.

  • Laboratory ball valves (except where used for vacuum service) have internal check valves to prevent backflow into gas system.

  • Index discs are cemented in place.

  • Fixture riser is 1/2” IPS heavy wall pipe to resist bending and breakage.

  • Hooded nylon handle conceals water valve stem and packing nut. Nut has set screw to prevent removal.

  • Round serrated hose end is secured with set screw to prevent removal.

  • All threaded connections are secured with cement.

Additional Model

  • VR5300-110WSA Same as above except with in–line vacuum breaker on water outlet.
