[fullwidth backgroundcolor=”no” backgroundimage=”” backgroundrepeat=”no-repeat” backgroundposition=”left top” backgroundattachment=”scroll” video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” bordersize=”0px” bordercolor=”” borderstyle=”” paddingtop=”0px” paddingbottom=”0px” paddingleft=”0px” paddingright=”0px” menu_anchor=”” equal_height_columns=”no” hundred_percent=”no” class=”” id=””][fusion_text]WaterSaver offers two styles of goosenecks for ColorTech BT water fittings. Rigid goosenecks thread directly into the top of the tap body. The gooseneck is thus absolutely rigid. Convertible rigid/swing goosenecks have a union-style construction with union nut and two O-rings. Goosenecks can be set as either rigid or swing in the field.
All goosenecks and spouts are fabricated of heavy wall brass tubing with a minimum wall thickness of .085″ (2.2mm). Goosenecks and spouts will therefore resist bending and stand up to even the most demanding lab conditions. Goosenecks and spouts have a separate outlet coupling with a G3/8 thread soldered to the end of the tube for attachment of serrated hose ends, aerators and other outlet fittings.[/fusion_text][/fullwidth][fullwidth backgroundcolor=”no” backgroundimage=”” backgroundrepeat=”no-repeat” backgroundposition=”left top” backgroundattachment=”scroll” video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” bordersize=”0px” bordercolor=”” borderstyle=”” paddingtop=”0px” paddingbottom=”0px” paddingleft=”0px” paddingright=”0px” menu_anchor=”” equal_height_columns=”no” hundred_percent=”no” class=”” id=””][fusion_text]

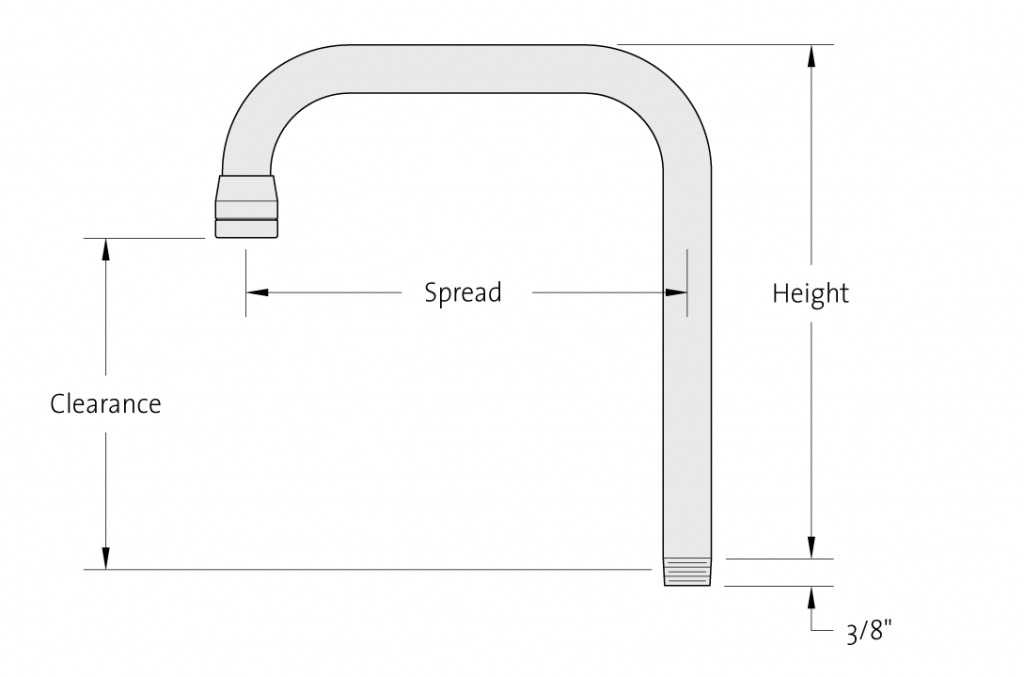

Rigid Goosenecks
[/fusion_text][two_fifth last=”no” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][imageframe lightbox=”no” style_type=”none” bordercolor=”” bordersize=”0px” borderradius=”0″ stylecolor=”” align=”none” link=”” linktarget=”_self” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””] [/imageframe][/two_fifth][three_fifth last=”yes” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][fusion_text]
Rigid Goosenecks |
Spread | Height | Clearance |
BTRG4 | 4″ (102mm) | 7 3/4″ (197mm) |
5-1/8″ (130mm) |
BTRG6 | 6″ (152mm) | ||
BTRG8 | 8″ (203mm) | ||
BTRG9 | 9″ (229mm) | ||
BTRG10 | 10″ (254mm) | ||
BTRG12 | 12″ (305mm) |
[/fusion_text][/three_fifth][/fullwidth][fullwidth backgroundcolor=”no” backgroundimage=”” backgroundrepeat=”no-repeat” backgroundposition=”left top” backgroundattachment=”scroll” video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” bordersize=”0px” bordercolor=”” borderstyle=”” paddingtop=”0px” paddingbottom=”0px” paddingleft=”0px” paddingright=”0px” menu_anchor=”” equal_height_columns=”no” hundred_percent=”no” class=”” id=””][fusion_text]

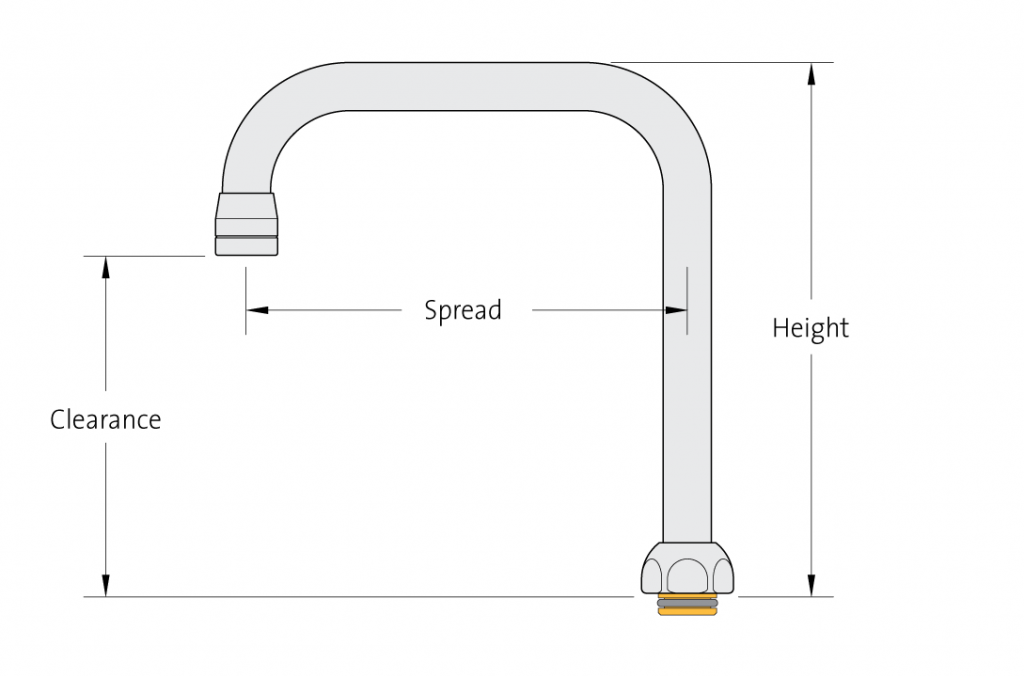

Swing Goosenecks
[/fusion_text][two_fifth last=”no” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][imageframe lightbox=”no” style_type=”none” bordercolor=”” bordersize=”0px” borderradius=”0″ stylecolor=”” align=”none” link=”” linktarget=”_self” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””] [/imageframe][/two_fifth][three_fifth last=”yes” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][fusion_text]
Rigid/Swing Goosenecks | Spread | Height | Clearance |
BTRS4 | 4″ (102mm) | 8 1/4″ (210mm) |
5 5/8″ (143mm) |
BTRS6 | 6″ (152mm) | ||
BTRS8 | 8″ (203mm) | ||
BTRS9 | 9″ (229mm) | ||
BTRS10 | 10″ (254mm) | ||
BTRS12 | 12″ (305mm) |
[/fusion_text][/three_fifth][/fullwidth][fullwidth backgroundcolor=”no” backgroundimage=”” backgroundrepeat=”no-repeat” backgroundposition=”left top” backgroundattachment=”scroll” video_webm=”” video_mp4=”” video_ogv=”” video_preview_image=”” overlay_color=”” overlay_opacity=”0.5″ video_mute=”yes” video_loop=”yes” fade=”no” bordersize=”0px” bordercolor=”” borderstyle=”” paddingtop=”0px” paddingbottom=”0px” paddingleft=”0px” paddingright=”0px” menu_anchor=”” equal_height_columns=”no” hundred_percent=”no” class=”” id=””][fusion_text]
Rigid/Swing Goosenecks
[/fusion_text][two_fifth last=”no” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][imageframe lightbox=”no” style_type=”none” bordercolor=”” bordersize=”0px” borderradius=”0″ stylecolor=”” align=”none” link=”” linktarget=”_self” animation_type=”0″ animation_direction=”down” animation_speed=”0.1″ class=”” id=””] [/imageframe][/two_fifth][three_fifth last=”yes” spacing=”yes” background_color=”” background_image=”” background_repeat=”no-repeat” background_position=”left top” border_size=”0px” border_color=”” border_style=”” padding=”” class=”” id=””][fusion_text]

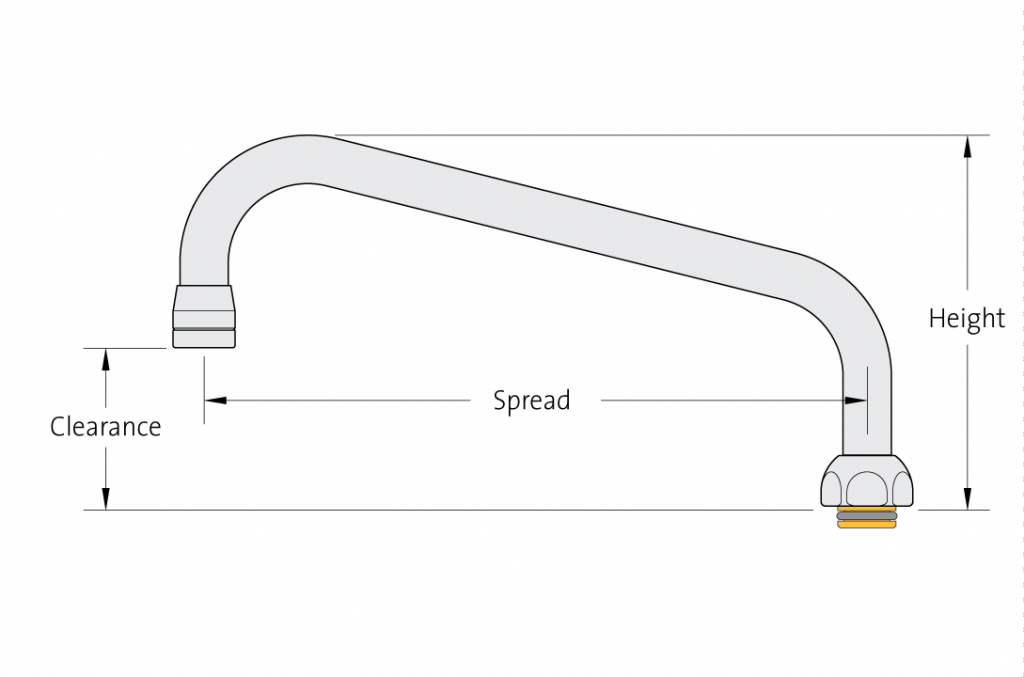

Spouts | Spread | Height | Clearance |
BTRSW6 | 6″ (152mm) | 4-3/8″ (111mm) | 1-1/2″ (38mm) |
BTRSW9 | 9″ (229mm) | 5-1/8″ (130mm) | 2-1/4″ (57mm) |
BTRSW12 | 12″ (305mm) | 5-7/8″ (149mm) | 3″ (76mm) |
