Eye/Face Wash and Shower Units – Internal Drain
Units are designed for general laboratory applications. They are typically installed in laboratory
rooms or service corridors. Units have an internal drain connection within the stainless steel cabinet.
The eye/face wash drain is connected within the wall to the building drainage system.

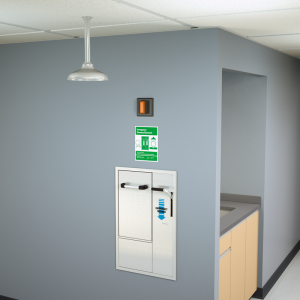

SSBF2150
Recessed Safety Station with Drain Pan, Exposed Shower Head

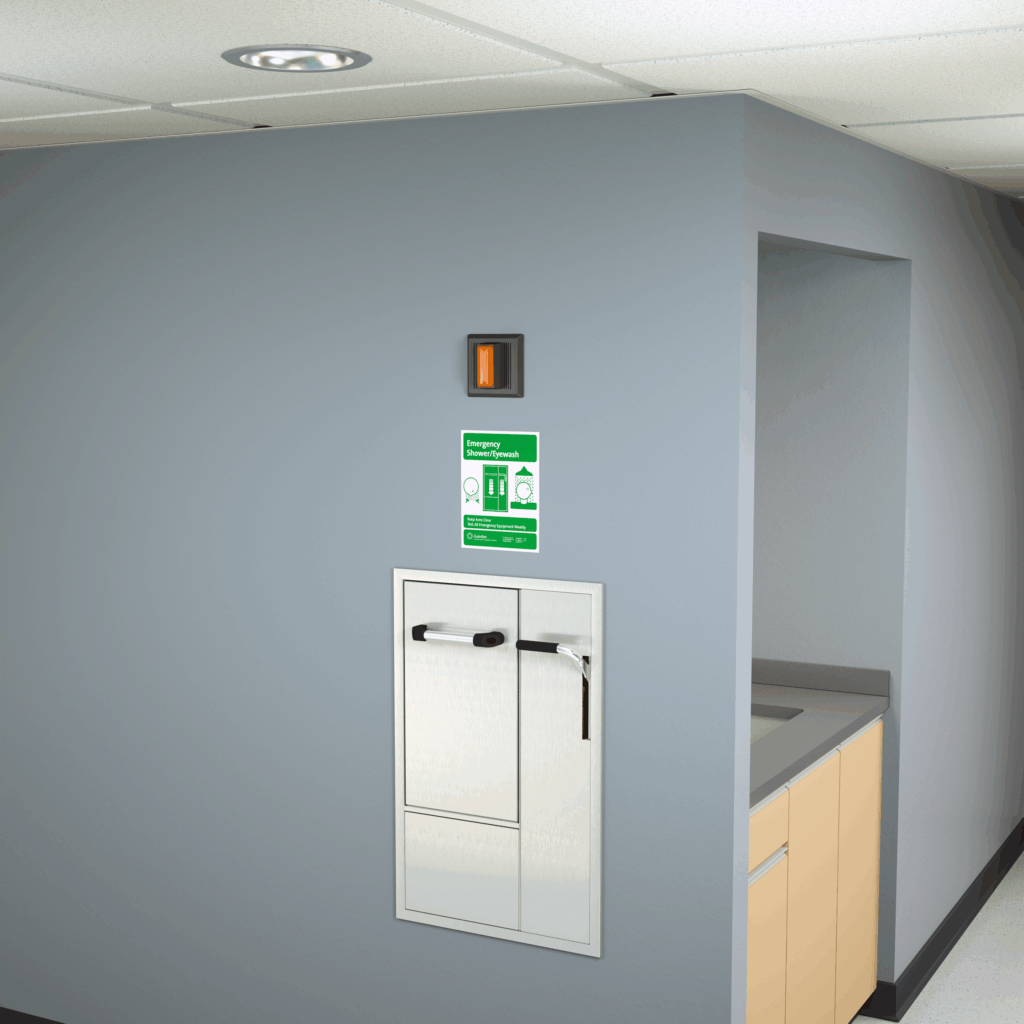

SSBF2160
Recessed Safety Station with Drain Pan, Recess Mounted Shower Head

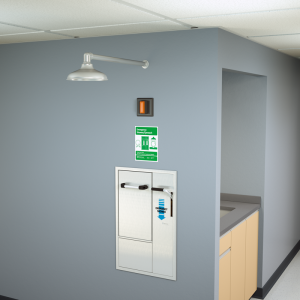

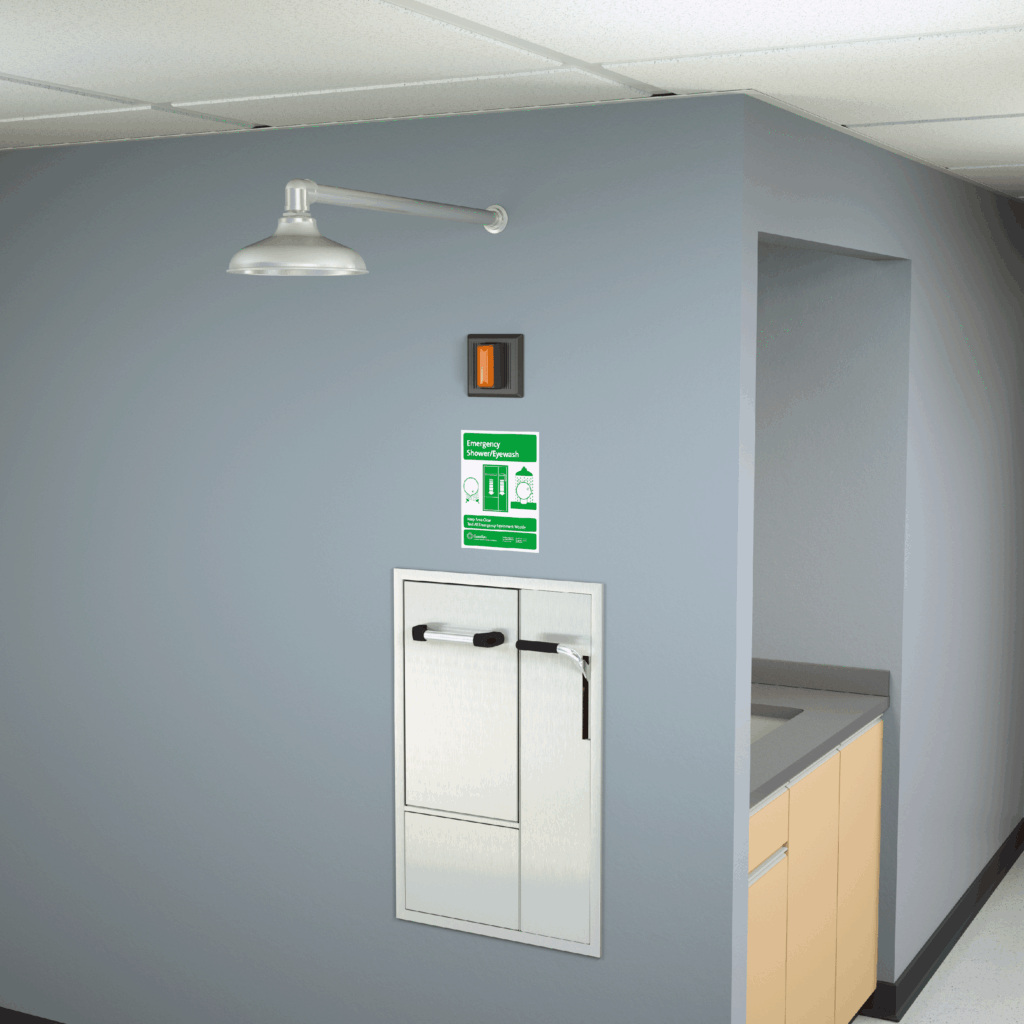

SSBF2170
Recessed Safety Station with Drain Pan, Wall Mounted Exposed Shower Head

Eye/Face Wash and Shower Units – Daylight Drain
Units drain through a port in the front face of the unit. Waste water from the eye/face wash drains
onto the floor in front of the unit. There units are used when it is preferable not to connect the
eye/face wash drain to the building drainage system.

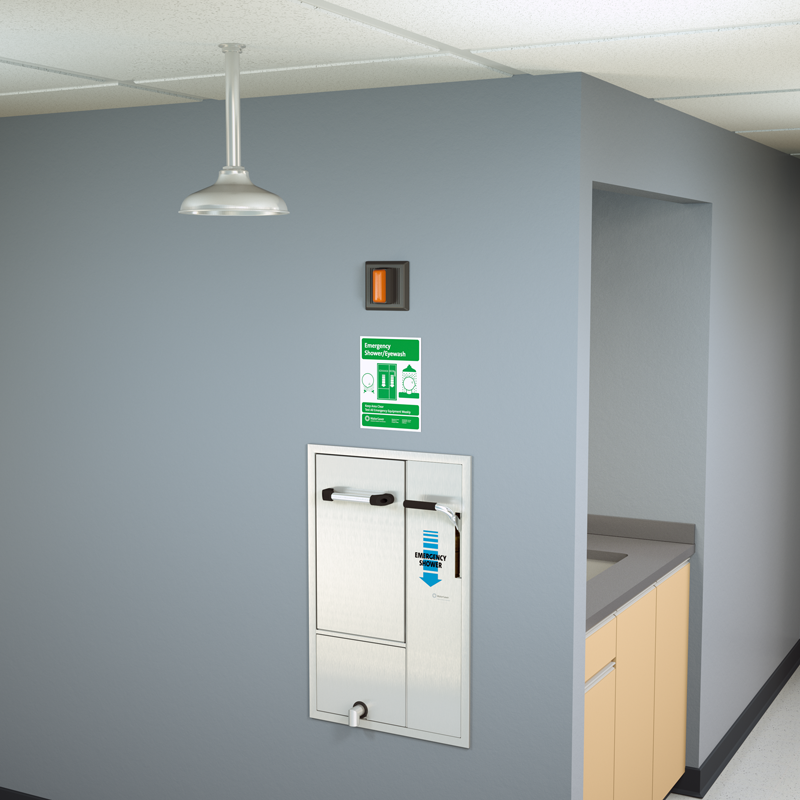

SSBF2152
Recessed Safety Station with Drain Pan and Daylight Drain, Exposed Shower Head

SSBF2162
Recessed Safety Station with Drain Pan and Daylight Drain, Recess Mounted Shower Head

SSBF2172
Recessed Safety Station with Drain Pan and Daylight Drain, Wall Mounted Exposed Shower Head

Eye/Face and Shower Unit – Surface Mounted
Unit is surface mounted on the face of the wall rather than being recessed into the wall.
This unit is advantageous when mounting on a CMU or masonry wall, or where the unit
is being retrofitted into an existing building.

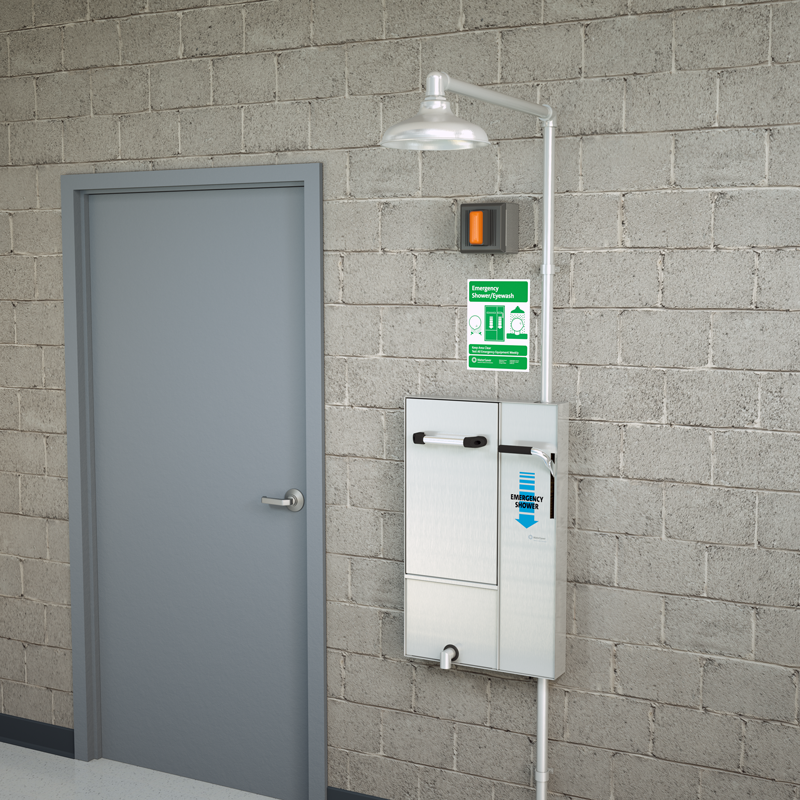

SSBF2173
Recessed Safety Station with Drain Pan, Surface Mounted

Eye/Face Wash and Shower Units – Fire-Rated – Internal Drain
Units are designed for installation on 1- or 2-hour fire-rated wall. The stainless steel cabinet
is itself fire-rated so that the unit maintains the integrity of the fire rating of the wall.
Units have an internal drain connection within the stainless steel cabinet.
The eye/face wash drain is connected within the wall to the building drainage system.

SSBF2350
Recessed Safety Station with Exposed Shower Head, Drain Pan, Fire-Rated Construction

SSBF2360
Recessed Safety Station with Recess Mounted Shower Head, Drain Pan, Fire-Rated Construction

SSBF2370
Recessed Safety Station with Wall Mounted Exposed Shower Head, Drain Pan, Fire-Rated Construction

Eye/Face Wash and Shower Units – Fire-Rated – Daylight Drain
Units are designed for installation on 1- or 2-hour fire-rated wall. The stainless steel cabinet
is itself fire-rated so that the unit maintains the integrity of the fire rating of the wall.
Units drain through a port in the front face of the unit. Wastewater from the eye/face wash drains
onto the floor in front of the unit. These units are used when it is preferable not to connect the
eye/face wash drain to the building drainage system.

SSBF2352
Recessed Safety Station with Exposed Shower Head, Drain Pan and Daylight Drain, Fire-Rated Construction

SSBF2362
Recessed Safety Station with Recess Mounted Shower Head, Drain Pan and Daylight Drain, Fire-Rated Construction

SSBF2372
Recessed Safety Station with Wall Mounted Exposed Shower Head, Drain Pan and Daylight Drain, Fire-Rated Construction

Eye/Face Wash and Shower Units – Cleanroom Construction
Units are designed and manufactured for cleanroom applications. Units are completely
sealed so that they may be used in clean environments.

SSBF2452
Recessed Safety Station with Exposed Shower Head, Drain Pan and Daylight Drain, Cleanroom Construction

SSBF2462
Recessed Safety Station with Recess Mounted Shower Head, Drain Pan and Daylight Drain, Cleanroom Construction

SSBF2472
Recessed Safety Station with Wall Mounted Exposed Shower Head, Drain Pan and Daylight Drain, Cleanroom Construction

Emergency Shower Units

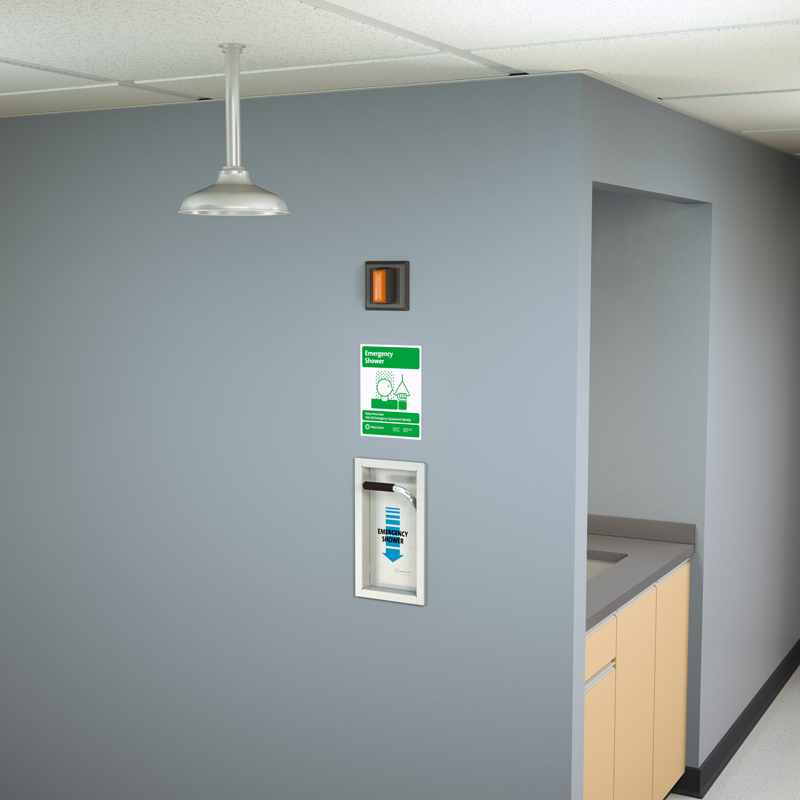

ESBF670
Recessed Emergency Shower Exposed Shower Head

ESBF671
Recessed Emergency Shower Recess Mounted Shower Head

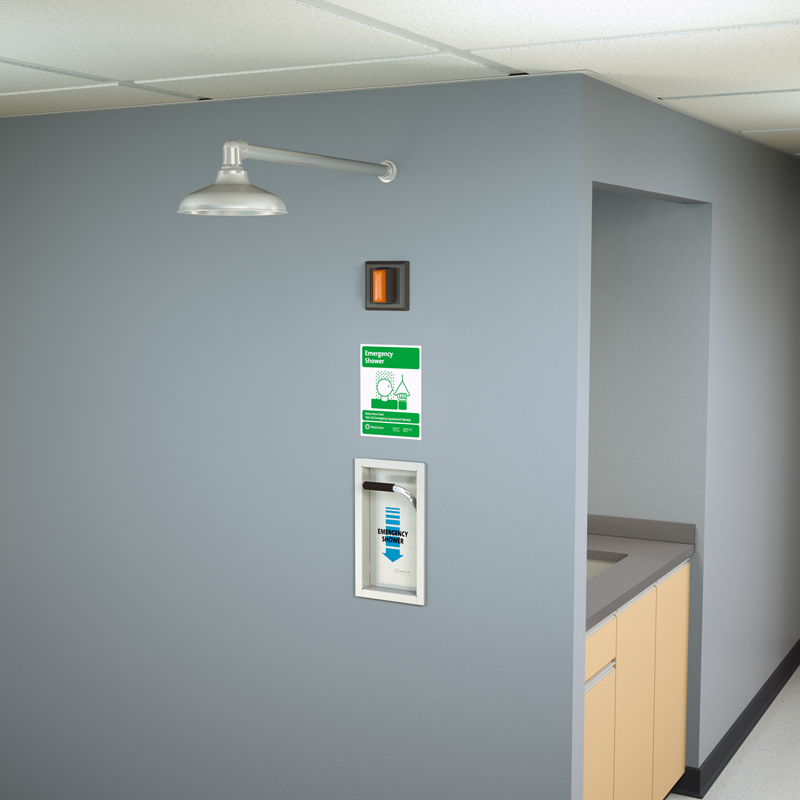

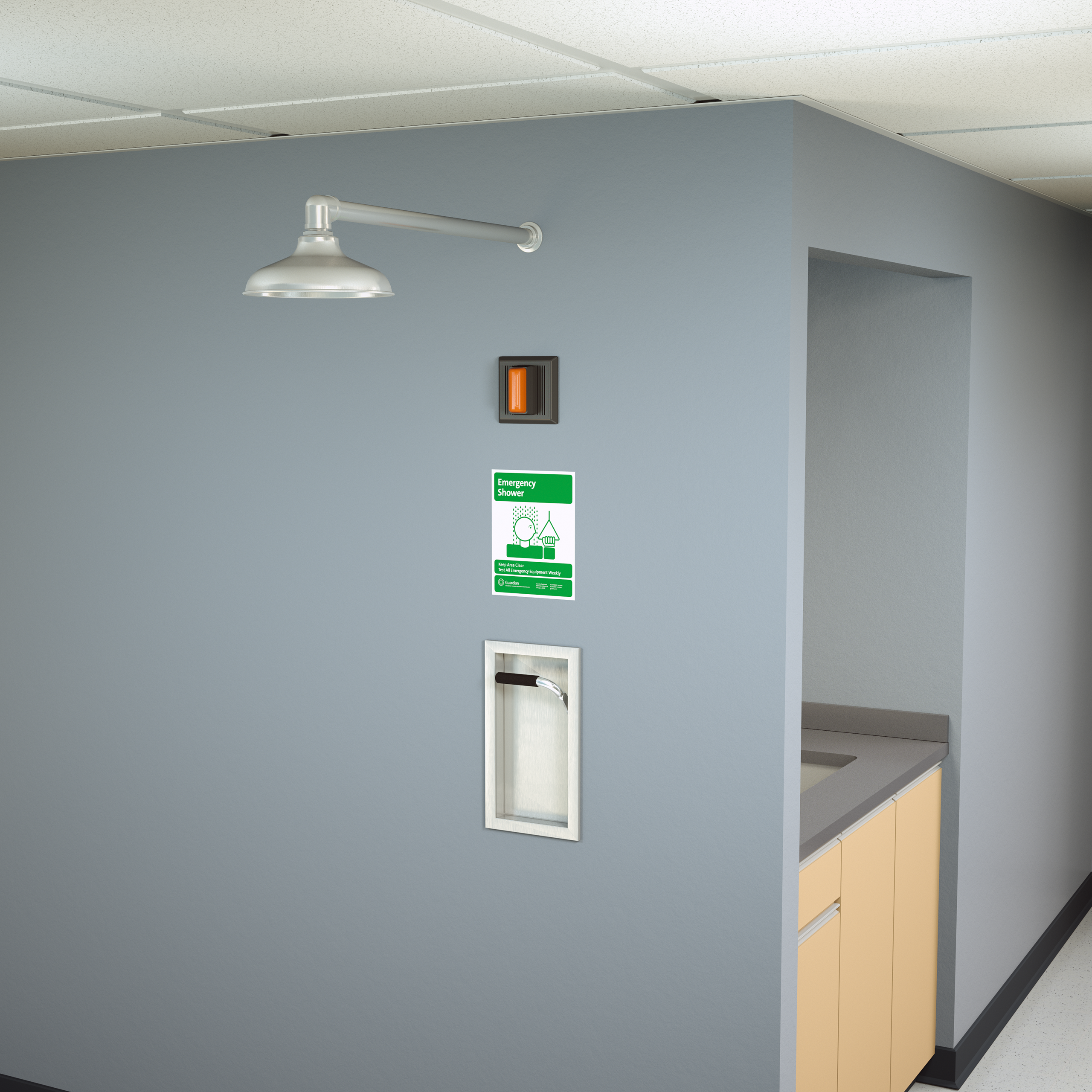

ESBF672
Recessed Emergency Shower Wall Mounted Exposed Shower Head

Eye/Face Wash Units

FEBF735DP
Swing-Down Eye/Face Wash with Drain Pan, Recess Mounted

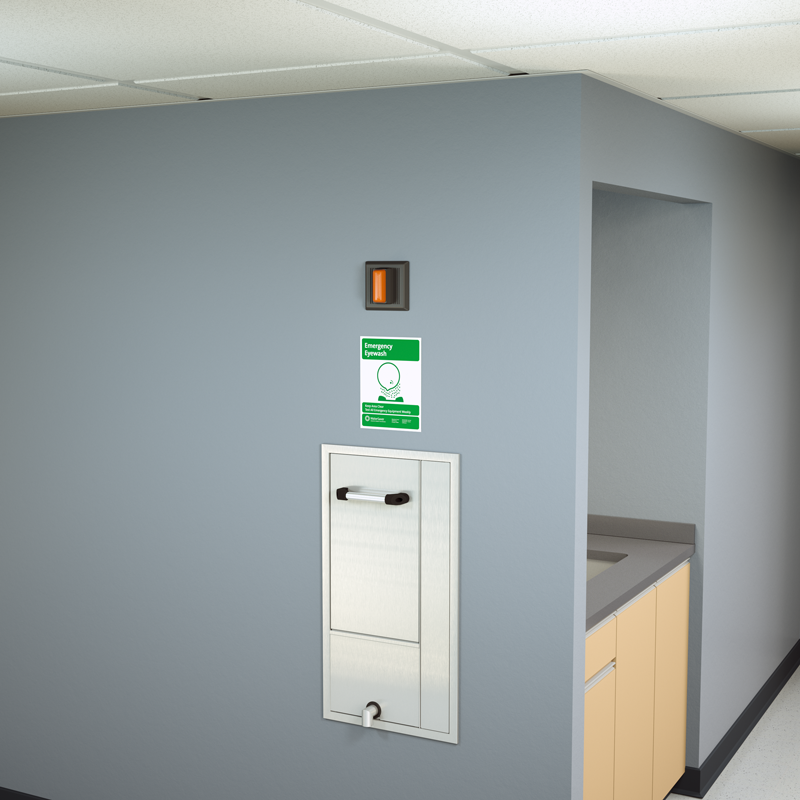

FEBF735FDP
Swing-Down Eye/Face Wash with Drain Pan, Recess Mounted, Daylight Drain
