BTVR611

Single Water Tap, Bench Mounted

Application: Laboratory water tap for cold water. Tap has heavy duty construction to withstand bending, breakage and disassembly. All threaded connections are secured with cement.

Finish: Furnished with white powder coated finish as standard. Other colors and finishes available as options (see below).

Mounting: Bench or countertop mounted with locator pins.

Body: Forged brass.

Headwork: WaterSaver self-contained compression valve cartridge with replaceable stainless steel seat. Packing nut is secured with set screw to prevent removal.

Handle: Molded nylon hooded style handle with index disc. Handle and index are color coded and marked per EN 13792. Index disc is cemented in place.

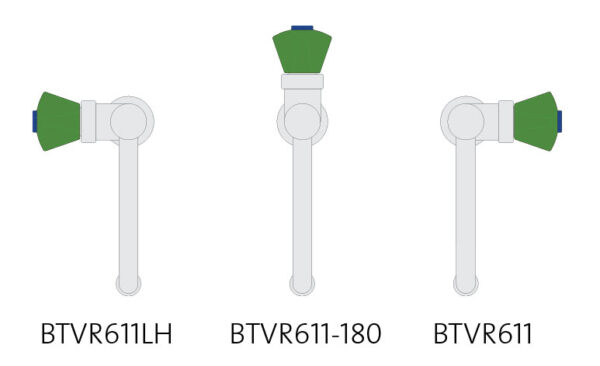

Gooseneck: 6” (152mm) rigid gooseneck. Gooseneck riser is 1/2″ IPS heavy wall pipe to resist bending and breakage. Gooseneck is set in right hand configuration unless left hand or 180 degrees is specified.

Inlet: Furnished with mounting shank, locknut and washer. G1/2 male inlet.

Outlet: G3/8 female outlet with anti-splash serrated hose end. Hose end has internal check valve to prevent backflow. Hose end is secured with set screw to prevent removal.

Quality Assurance: Fitting is fully assembled and factory tested prior to shipment. 10 bar (150 PSI) test pressure and maximum working pressure.

Optional Features

Finish Options:

  • Gray powder coated finish (GRY)

  • Polished chrome plated finish with clear epoxy coating (PCL)

  • Satin chrome plated finish with clear epoxy coating (SCC)

  • Satin nickel plated finish with clear epoxy coating (SNC)

Headwork/Valve Options:

  • Compression valve cartridge with adjustable volume control (use prefix “BTA”)

  • Ceramic disc valve cartridge (use prefix “BTC”)

Handle Option:

  • Forged brass wrist blade handle in place of hooded handle (add suffix “BH”)

Riser/Gooseneck Option:

  • 8″ (203mm) spread riser or gooseneck (add suffix “-8”)

Outlet Options:

  • VRBO055 vandal-resistant aerator in place of serrated hose end (add suffix “-55”)

  • BT118 pipe interrupter fitting to prevent back-siphonage (add suffix “-118”)
