Ordering Instructions for ColorTech Remote Control Assemblies

To order remote control assemblies, please proceed as follows:

Select the desired remote control valve. Specify:
- a. Valve construction (by including the suffix “FCN” for fine control needle valve, “N” for needle valve, “S” for steam valve, “W” for water valve or “WTL” for tin-lined water valve).
- b. Valve service (cold water, gas, air, vacuum, etc.).
- c. For CT739 and CT4285 valves, whether valve is for right hand or left hand mounting.
Select the desired outlet fitting. Outlet fittings are furnished with a color-coded epoxy finish as standard. Please specify if a different finish is desired.
From the ordering table, find the desired valve and outlet fitting. Read across and down to find the correct assembly number.
For assemblies using rod-type valves, specify:
- “L” dimension, measured from the top of the index disc to the centerline of the valve. If the “L” dimension is not specified, a standard dimension of 20″ will be furnished.
- “Y” dimension, measured from the centerline of the valve to the back of the flange or body on the outlet fitting. If the “Y” dimension is not specified, a standard dimension of 2-3/4″ will be furnished.
- Type of guide plate desired, as follows:
  - CT-A Black nylon flat guide plate with screws for straight panel
  - CT-B Black nylon threaded guide plate with locknut for straight panel
  - CT-C Black nylon 45 degree angle guide plate

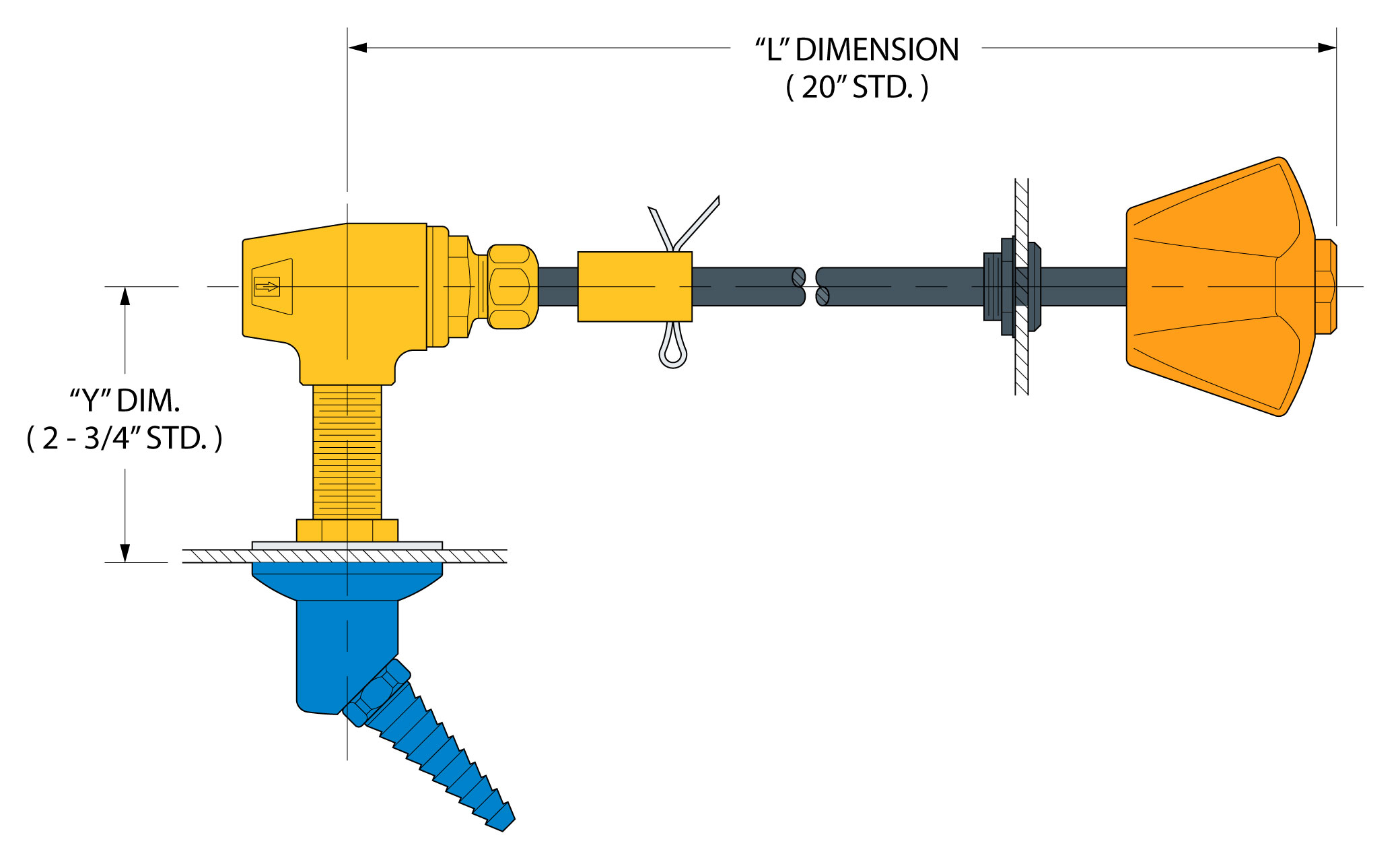

Remote Control Ordering Example A

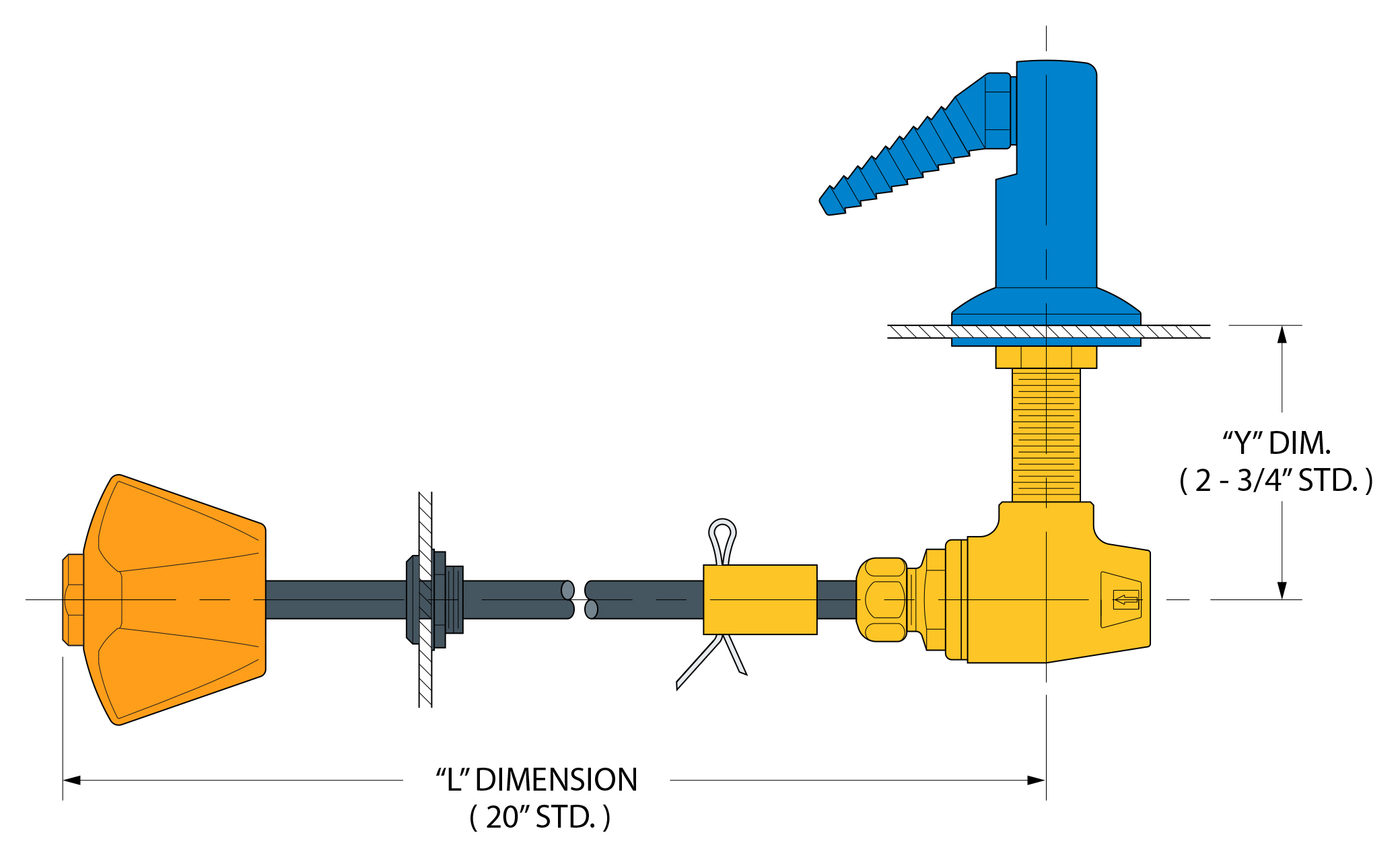

Remote Control Ordering Example B
