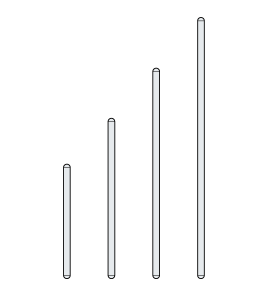

Horizontal Rods

Horizontal rods are machined from solid aluminum bar stock. Rods are cut to size, ends are rounded and each rod is polished to a satin finish. Rods are available in 1/2″ and 3/4″ diameter and a variety of lengths.

AAP155-024 3/4″ dia. x 24″ Horizontal Rod
AAP155-036 3/4″ dia. x 36″ Horizontal Rod
AAP155-039 3/4″ dia. x 39″ Horizontal Rod
AAP155-048 3/4″ dia. x 48″ Horizontal Rod
AAP145-024 1/2″ dia. x 24″ Horizontal Rod
AAP145-036 1/2″ dia. x 36″ Horizontal Rod
AAP145-039 1/2″ dia. x 39″ Horizontal Rod
AAP145-048 1/2″ dia. x 48″ Horizontal Rod

Vertical Rods

3/4″ diameter vertical rods are machined with the top end rounded and the bottom end tapered to fit into a rod socket. 1/2″ diameter vertical rods are machined with the top end rounded and the bottom end threaded. 1/2″ rods may be used either with a threaded socket or with the AAP120 tapered adaptor and a tapered socket.

AAP110-024 3/4″ dia. x 24″ Vertical Rod (Tapered)
AAP110-036 3/4″ dia. x 36″ Vertical Rod (Tapered)
AAP110-039 3/4″ dia. x 39″ Vertical Rod (Tapered)
AAP110-048 3/4″ dia. x 48″ Vertical Rod (Tapered)
AAP125-024 1/2″ dia. x 24″ Vertical Rod (Threaded)
AAP125-036 1/2″ dia. x 36″ Vertical Rod (Threaded)
AAP125-039 1/2″ dia. x 39″ Vertical Rod (Threaded)
AAP125-048 1/2″ dia. x 48″ Vertical Rod (Threaded)

Clamps

Clamps are designed to hold vertical and horizontal rods perpendicular to each other. Clamps are adjustable and are furnished with set screws to secure clamp to rods. Clamps are machined from aluminum bar stock and polished to a satin finish.

AAP150 Closed Style Clamp for 3/4″ Diameter Rods. Clamp has two holes perpendicular to each other.
AAP151 Closed Style Clamp for 1/2″ Diameter Rods. Clamp has two holes perpendicular to each other.
AAP153 Open Style Clamp for 1/2″ Diameter Rods. Clamp has hole for vertical rod and slot for horizontal rod.

Rod Sockets

AAP100 Aluminum rod socket with tapered bore and flat top for recess mounting in countertop.
AAP101 Aluminum rod socket with tapered bore and radiused top for surface mounting on countertop.
AAP103 Aluminum rod socket with 1/2″ female thread and flat top for recessed mounting in countertop.
AAP104 Aluminum rod socket with 1/2″ female thread and radiused top for surface mounting on countertop.
