When laying out fixture groupings, it is necessary to provide ample space around fixtures for equipment to be connected to valves and for laboratory procedures to be carried out. It is also necessary to provide adequate spacing for handle clearances and easy operation of the faucets and valves.

Typical spacing for fixture arrangements at laboratory benches and sinks is shown below:

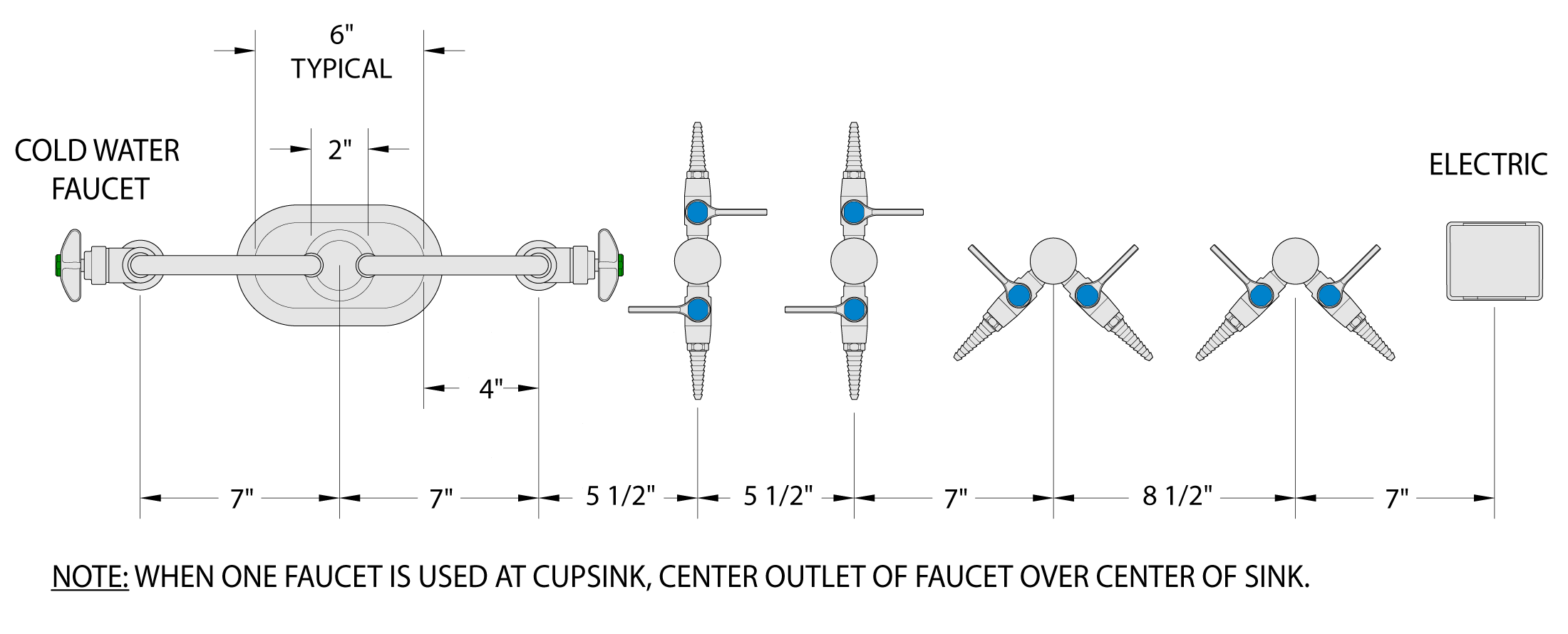

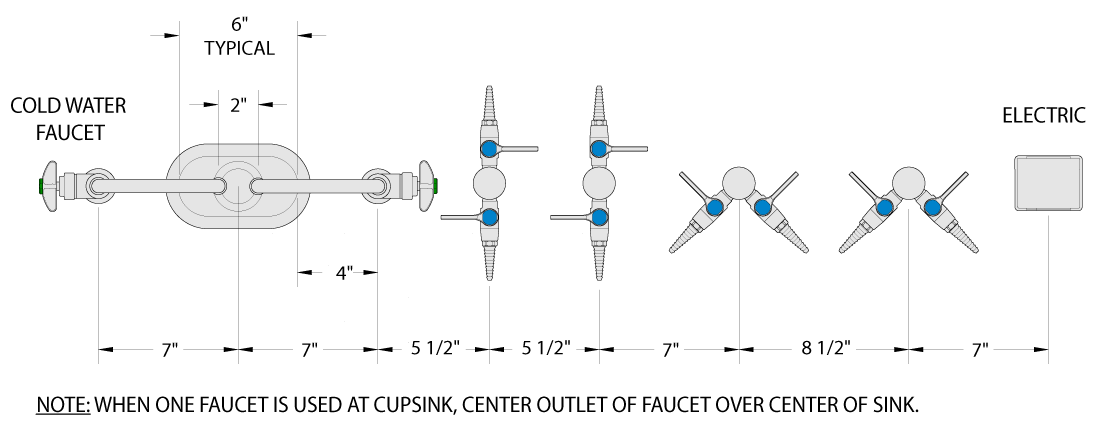

Typical Cupsink Arrangement

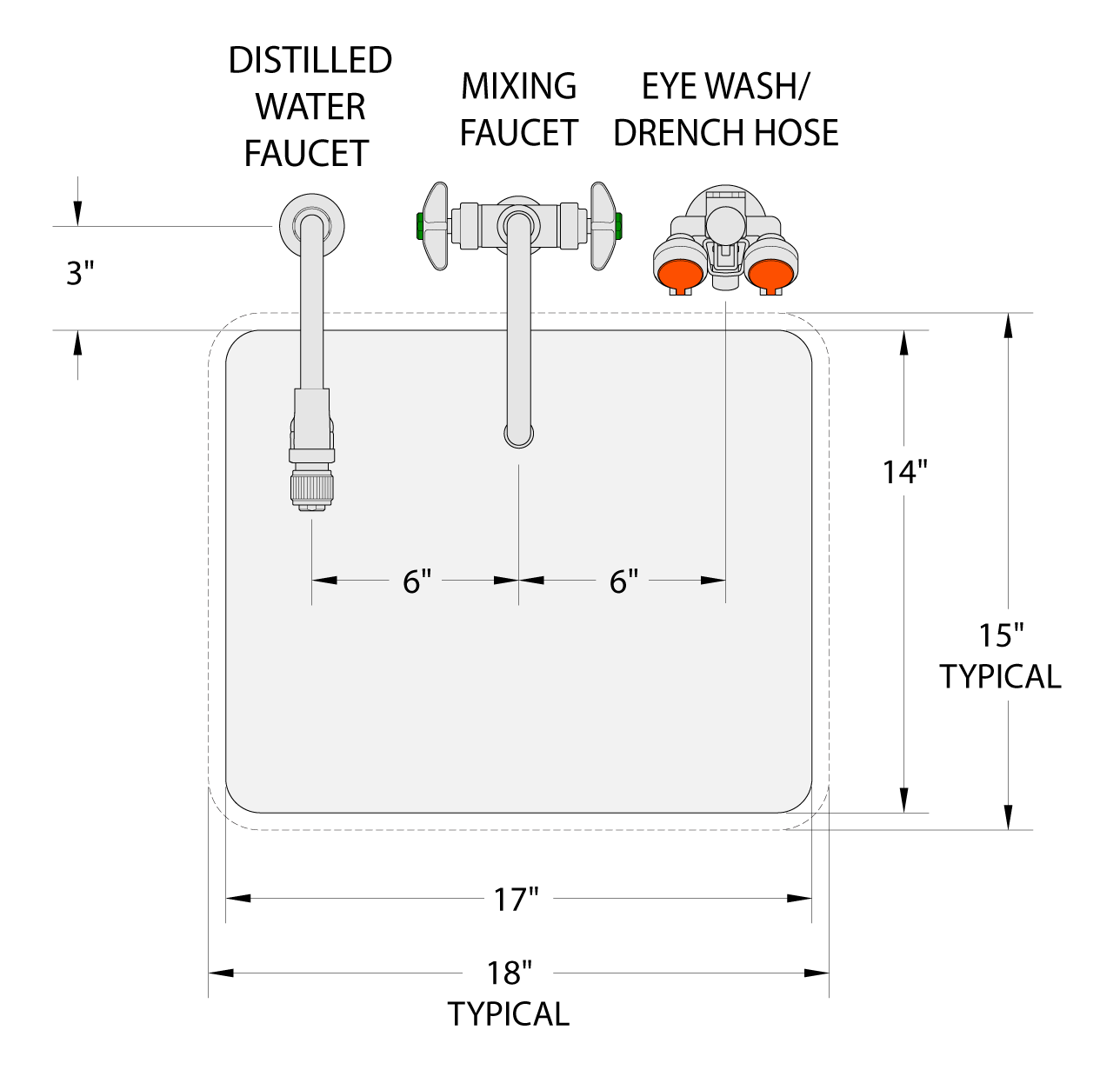

Typical Laboratory Sink Arrangement
