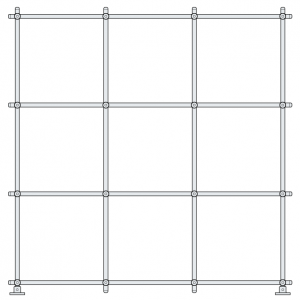

WaterSaver manufactures a complete line of components for lattice rod assemblies. A wide variety of assemblies for installation on bench tops and in fume hoods may be constructed using these components. Components are available in a choice of materials, as follows:
Aluminum. All components are machined from solid aluminum bar stock and polished to a satin (brushed) finish.
Plastic. Flanges and clamps are molded in black nylon for strength and chemical resistance. Rods are fabricated in white fiberglass.
Stainless Steel. Stainless steel components offer superior strength and corrosion resistance for the most demanding applications. All components are machined from Type 316 stainless steel bar stock and polished to a satin finish.
The rods listed below are representative of the most commonly used sizes. Rods can be fabricated in any length up to 120″.
| Aluminum | Plastic | Stainless Steel | |
| Flanges | |||
| Flange with Set Screw for 1/2″ Plain Rod | AAP158 | PAP158 | SAP158 |
| Flange with Thread for 1/2″ Threaded Rod | AAP158A | SAP158A | |
| Threaded Rods Threaded rods are typically used for vertical members and as tie rods to secure a lattice assembly to a wall or panel. |
|||
| 1/2″ dia. x 5″ Threaded Rod | AAP125–005 | SAP125–005 | |
| 1/2″ dia. x 8″ Threaded Rod | AAP125–008 | SAP125–008 | |
| 1/2″ dia. x 10″ Threaded Rod | AAP125–010 | SAP125–010 | |
| 1/2″ dia. x 12″ Threaded Rod | AAP125–012 | SAP125–012 | |
| 1/2″ dia. x 18″ Threaded Rod | AAP125–018 | SAP125–018 | |
| 1/2″ dia. x 24″ Threaded Rod | AAP125–024 | SAP125–024 | |
| 1/2″ dia. x 36″ Threaded Rod | AAP125–036 | SAP125–036 | |
| Rounded End Rods Plain end rods are typically used for vertical or horizontal members. |
|||
| 1/2″ dia. x 5″ Rod | AAP145–005 | PAP145–005 | SAP145-005 |
| 1/2″ dia. x 8″ Rod | AAP145–008 | PAP145–008 | SAP145-008 |
| 1/2″ dia. x 12″ Rod | AAP145–012 | PAP145–012 | SAP145-012 |
| 1/2″ dia. x 24″ Rod | AAP145–024 | PAP145–024 | SAP145-024 |
| 1/2″ dia. x 36″ Rod | AAP145–036 | PAP145–036 | SAP145-036 |
| 1/2″ dia. x 48″ Rod | AAP145–048 | PAP145–048 | SAP145-048 |
| 1/2″ dia. x 60″ Rod | AAP145–060 | PAP145–060 | SAP145-060 |
| 1/2″ dia. x 72″ Rod | AAP145–072 | PAP145–072 | SAP145-072 |
| Clamps Closed style clamps have two 1/2″ dia. holes that are perpendicular to each other. They are typically used for securing a lattice rod assembly to a wall or panel. Open style clamps have one 1/2″ dia. hole and an open slot that is perpendicular to it. These clamps are typically used to connect vertical and horizontal rods. |
|||
| Closed Style Clamp | AAP151 | PAP151 | SAP151 |
| Open Style Clamp | AAP153 | PAP153 | SAP153 |
